Home » Products » Vertical Scraper Bottom Discharge Centrifuge » SG Three-column Manual Bottom Discharge Scraper Centrifuges
SG

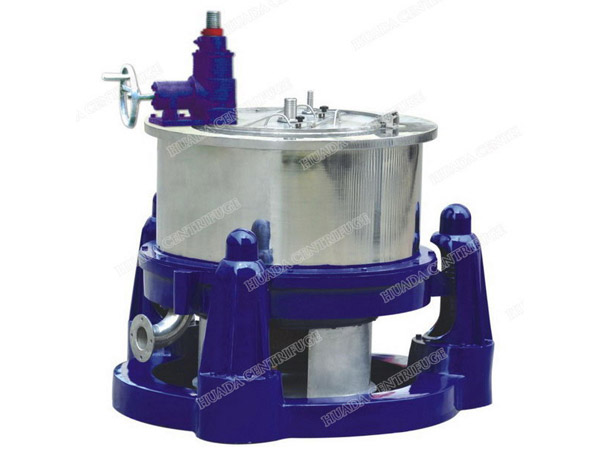

Three-column Manual Bottom Discharge Scraper Centrifuges

This product has been discontinued and removed from our shelves.

The SG three-column manual bottom discharge scraper centrifuges have nearly the same applications with SGZ three-column automatic bottom discharge scraper centrifuges. However, this vertical scraper centrifuge is highly distinguished by its features.

Main Features of SG Scraper Centrifuge
1. Feeding can be done at medium speed. Manual scraping speed can be adjusted in accordance with filtration cake. Our chemical separation machine is particularly applicable for hard filtration cake.

2. Flexible adjustments are allowed for feeding, primary filtration, washing, fine filtration and discharge, whereby to cater to various substances and separation requirements.

3. As for treatment of loose materials, our pharmaceutical separation machine is compatible with variable frequency drive to achieve stable start-up and adjustable centrifuge force.

4. This liquid clarifying device is endowed with relatively enclosed structure.

5. Scraper movement is mechanically controlled to ensure safety and reliability. In order for more safety, we provide optional rotation speed detection, over-vibration protection, motor overload and overheat protection.

Main Application of SG Scraper Centrifuge

Note on Configuration of SG Scraper Centrifuge
During order making, special attention should paid on specific requirements of material, feeding method, explosion-proof, surface finish and electrical component brands, etc.

Technical Parameter of SG Scraper Centrifuge

Item Model
SG800 SG1000 SG1250
Basket Dia. (mm) 800 1000 1250
Basket Volume (L) 100 140 280
Max. Load (kg) 135 210 420
Max. Speed (rpm) 1200 1000 900
Centrifugal Force 645 560 565
Motor Power (kW) 7.5 11 18.5
Dimension (L×W×H) (mm) 1900×215100×1730 2150×1750×2200 2500×2000×2500
Weight (kg) 2300 3500 4500
