LLL

Vertical Worm Screen Centrifuges

This product has been discontinued and removed from our shelves.

Main Features of LLL Vertical Worm Screen Centrifuge
1. Rotating components on this large volume centrifuge, such as basket and scroll, are of vertical layout, ensuring remarkable operation stability and reduced vibration.

2. Main parts of our vertical filtration centrifuge, including basket and scroll, are made from high-end stainless steel or manganese steel, thus offering outstanding corrosion resistance and durability.

3. Basket conical angle is varied by different processing methods.

4. Specialized metal bar screen comes with thickness up to 1.0mm, and features prominent abrasion resistance and long lifespan.

5. This fully automatic filtration centrifuge is endowed with continuous workflow covering feeding, spinning, dewatering and discharge, whereby offering processing capacity up to 60t.

6. Our industrial filtration centrifuge is fitted with independent lubrication system, so as to provide reliable performance and easy maintenance.

7. 3K-type planetary differential gear is introduced. Compared to other similar products, our gear offers larger torque.

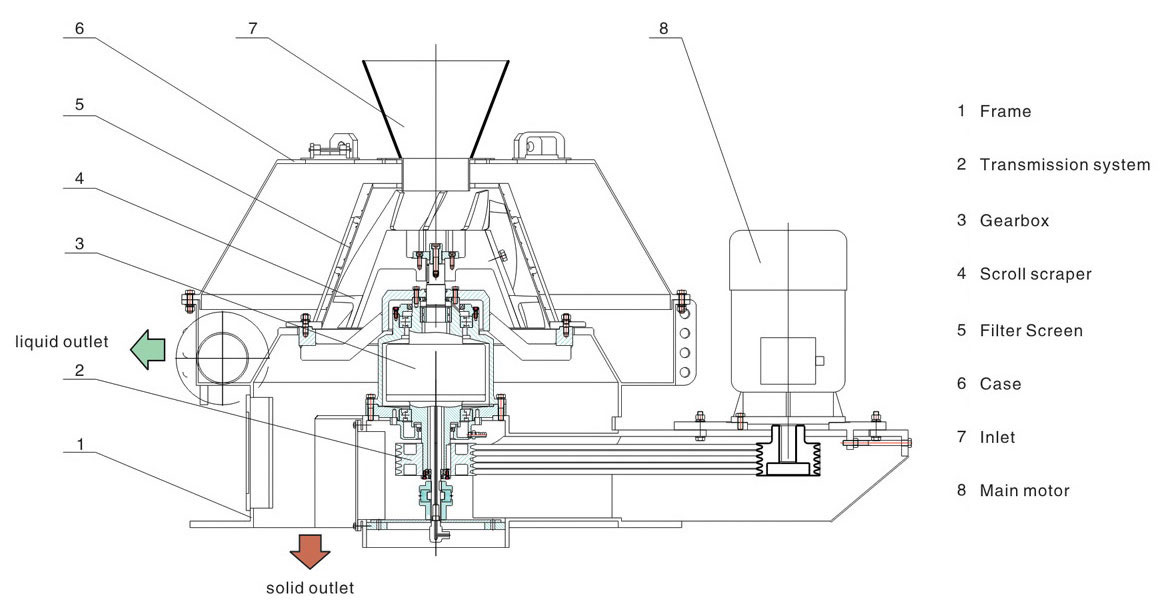

Structure Diagram of LLL Vertical Worm Screen Centrifuge

Technical Parameter of LLL Vertical Worm Screen Centrifuge

Model LLL500 LLL600 LLL700
Basket Dia. (mm) 500 600 700
Max. Speed (r/min) 2000 1600 1330
Centrifugal Force 1120 860 660
Screen Quantity 20-70 20-70 20-70
Production Capacity (t) 20 40 60
Motor Power (kW) 15 30 45
Voltage (V) 380/460 380/460 380/460
IP Rating IP56 IP56 IP56
Dimension (L×W×H) (mm) 1520×1180×1200 1800×1400×1450 2250×1580×1500
Weight (kg) 900 2980 3440
