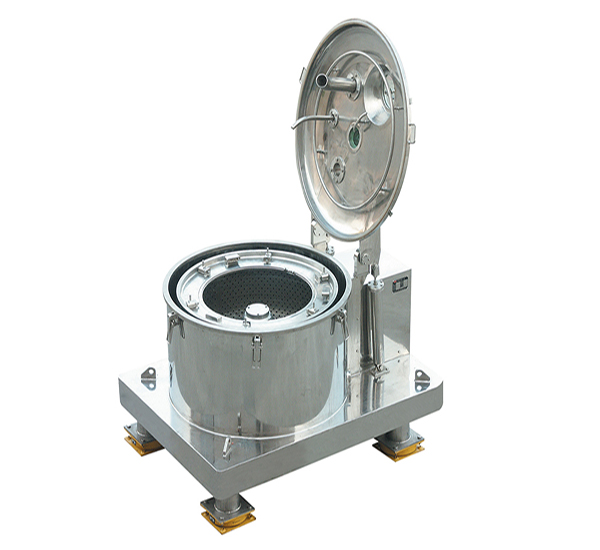

Top Discharge Centrifuges with Filter Bag

The PSD top discharge centrifuges with filter bag are solid-liquid separation equipment in base plate design. This series of industrial centrifuge is endowed with simply structure, reliable performance, easy operation and maintenance. Filtration time allows for free adjustment, resulting in effective cake washing and undamaged solid phase. Moreover, filter bag can be readily cleaned.

Main Features of PSD Top Discharge Centrifuge
1. This wastewater treatment equipment employs variable frequency drive to achieve stable start-up and adjustable centrifugal force.

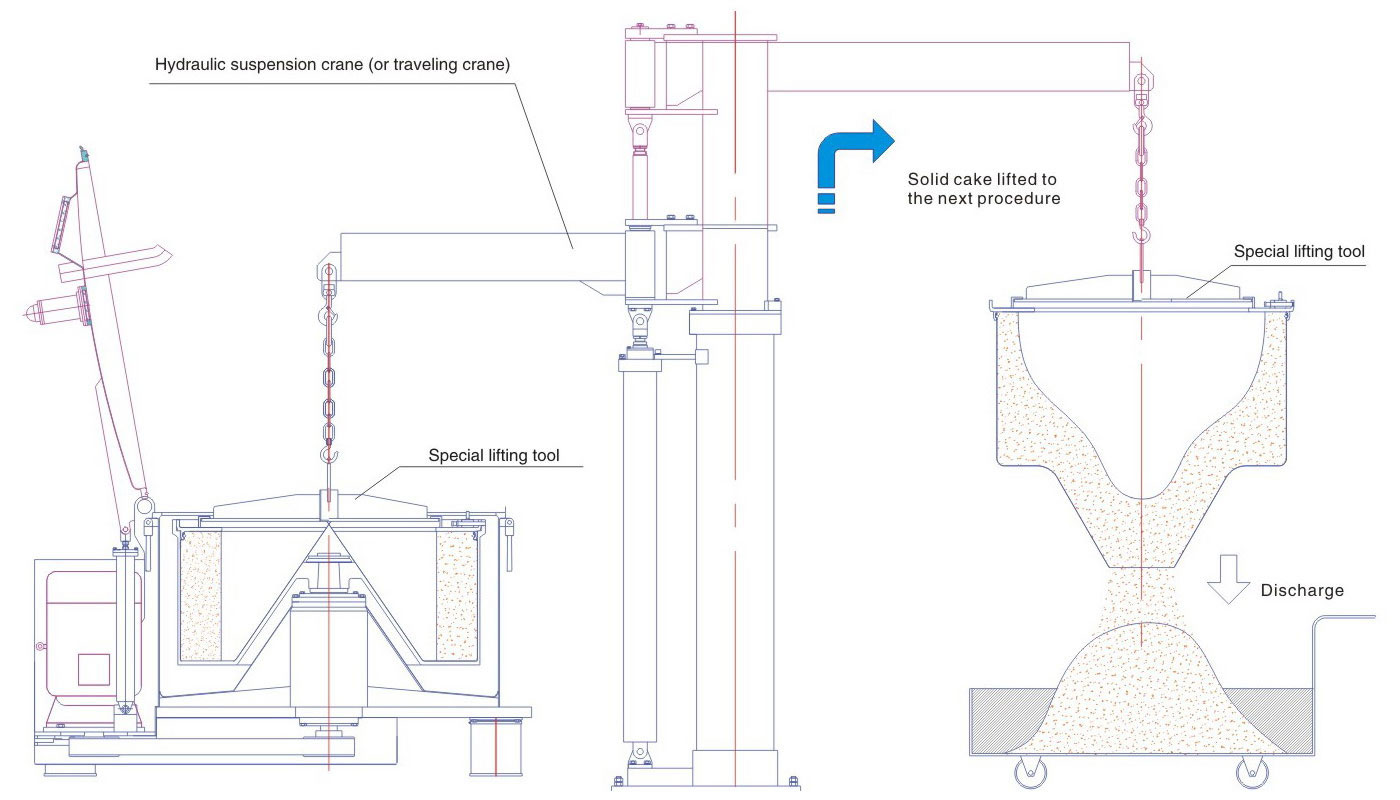

2. Thanks to filter bag discharge method, our sludge treatment machine brings minimized damage to solid phase, and offers reduced workload, enhanced efficiency and exceptional versatility.

3. Well-conceived structure design features smooth and polished surface for complete residual heel removal. With the design of hinged cover, it’s much easier to clean the gap between housing and basket.

4. Machine base and basket are welded together in a holistic approach to offer impressive load bearing capacity.

5. Platform base design comes with low center of gravity and minimized footprints. Moreover, the base can be regarded as operation platform for convenience.

6. Four-point liquid damping vibration absorber is introduced for excellent performance and simplified maintenance.

7. There are general pipes and viewing window placed on the hinge cover, including feeding pipe, washing pipe, inspection window and lighting hole, etc.

8. Optional CIP system is available to wash interior parts such as inner wall of top discharge centrifuge housing, liquid slot and inner and outer side of basket, etc. Enhanced sanitation status is provided to meet GMP standards.

9. Enclosed structure is guaranteed by utilization of silicone rubber or fluororubber. Optional nitrogen protection system enables our top discharge centrifuge to be applicable for poisonous, flammable and explosive environments.

10. Optional hydraulic crane with stainless steel housing is also presented for your needs of easy discharge and high sanitation level.

Main Application of PSD Top Discharge Centrifuge
This industrial separation machine is highly suitable for solid-liquid separation of slurries containing granules and fibrous materials, such as plaster, copper sulfate, potassium chloride, borax, dyestuff, pesticide, salt, gourmet powder, food additive, starch, sugar, chemical seasoning, antibiotic, vitamin, as well as sludge treatment, wastewater treatment and metal refining like including copper, zinc and aluminum, etc.

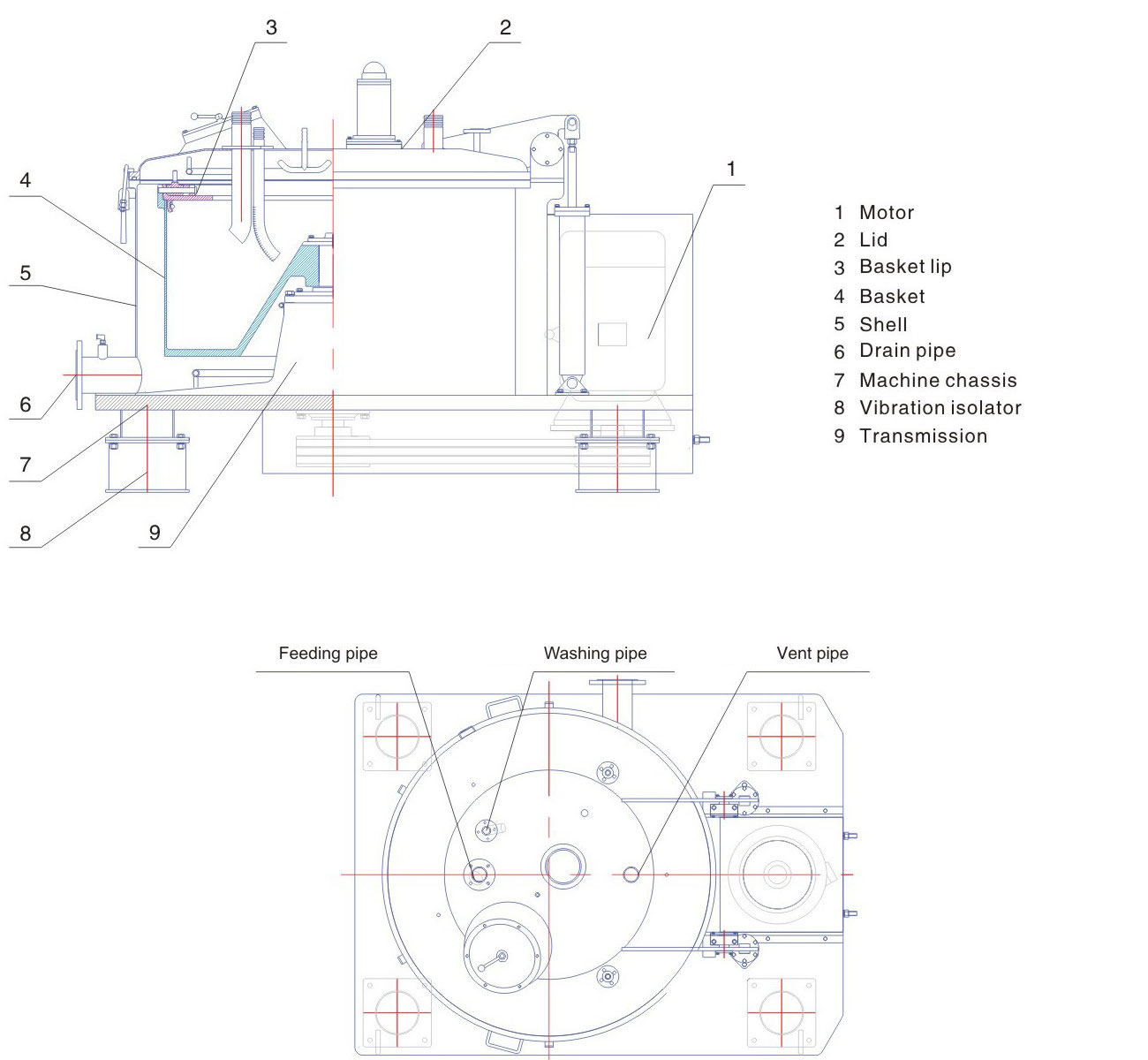

Schematic Diagram of PSD Top Discharge Centrifuge

Technical Parameter of PSD Top Discharge Centrifuge

Item Model
PSD800 PSD1000 PSD 1200 PSD 1250 PSD 1500 PSD 1600 PSD 1800
Basket Dia.(mm) 800 1000 1200 15250 1500 1600 1800
Basket Volume (L) 100 175 350 400 600 730 910
Max. Load (kg) 135 250 470 530 800 880 1100
Max. Speed (rpm) 1200/1500 1000/1200 960/1050 960/1050 850 800 780
Centrifugal Force 645/1006 560/806 620/740 645/770 645 647 612
Motor Power (kW) 5.5/7.5 11/15.0 15/18.5 18.5/22 30 37 37
Dimension (L×W×H) (mm) 1500×1200 ×1230 1790×1380 ×1290 2140×1620 ×1520 2140×1620 ×1520 2600×2200 ×1800 3050×2300 ×1730 3300×2600 ×2100
Weight (kg) 2300 3500 3000 3000 5000 7500 10000
