Introduction

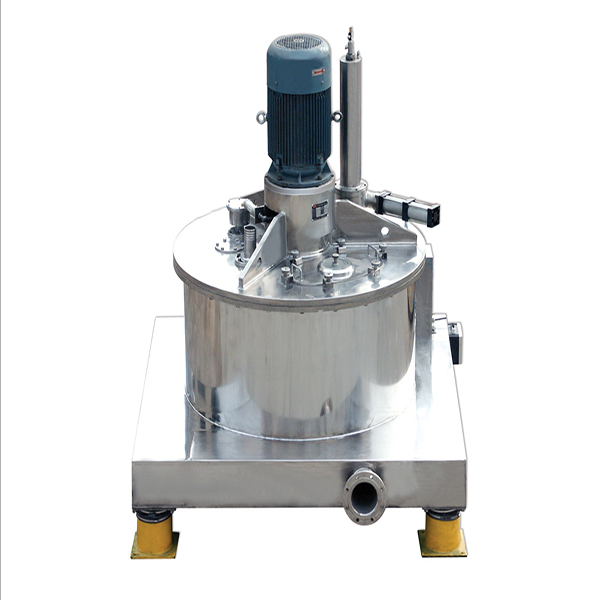

The PAUT/AUT bottom discharge scraper centrifuges with top mounted motor are the batch-type centrifuges. This automatic filter centrifuge involves the utilization of hydraulic system and electronic control system, and can be switch to manual operation upon request. Top-mounted motor eliminates the annoying problem of friction dust caused by conveyor belt.

Main Features of PAUT/AUT Scraper Centrifuge
1. Top-mounted motor makes rotary center of the drive and basket coincide with the center of this suspended basket centrifuge, thus delivering stable operation.

2. Our motor-driven centrifuge is fitted with liquid damping isolator and requires no foundation for installation, resulting in minimized workload of operation and maintenance.

3. Machine housing and base are connected rigidly for simple and compact structure.

4. Independent bearing seat comes with large support capacity on the basis of low center of gravity of basket.

5. No utilization of belt brings no friction dust.

6. Fully automatic operation control ensures safe and dependable performance.

7. Optional nitrogen protection system is available for explosion-proof application.

8. Options of base plate and three point suspension are available.

Applications of PAUT/AUT Scraper Centrifuge
Our industrial filtration equipment has been proved to be ideal for slurries separation featuring large viscosity, strong hydrophilicity and hard-to-separate, as well as particles containing medium-sized or fibroid material. It also finds applications in separation of some crystalloid solid-state materials (granular, fibroid, flaky, etc.) in loosen state or with slight viscosity.

Thanks to exceptional adaptability to materials, our scraper centrifuge is the tool of choice to separate slurries containing solid phase ≥0.05mm and with great thermal sensitivity. Based on hydraulic narrow scraper and low-speed enclosed discharging, this centrifuge features outstanding cake discharge capability and minimized damage on crystals, which are enjoyed by industries of chemical, pharmacy, food, environment protection and light industry, etc.

Optional Configuration of PAUT/AUT Scraper Centrifuge
1. Feeding method: side feed via single tube or multiple tubes
2. Scraper discharge: pneumatic or hydraulic
3. Motor drive: Common motor, explosion-proof motor
4. Protection: nitrogen protection system, explosion proof, vibration protection, electric-mechanical interlocking, overload protection
5. Surface treatment: Mirror finishing, matt finishing, and dulling
6. Discharge hopper: custom diameter and height
7. Residual cake treatment: recoil or air-assist scraper
8. Program control: PLC, cake level detector
9. Nitrogen protection system: automatic nitrogen supplier, hydraulic sealing device and gas-liquid separator
10. Coating treatment: HALAR lining, PE lining

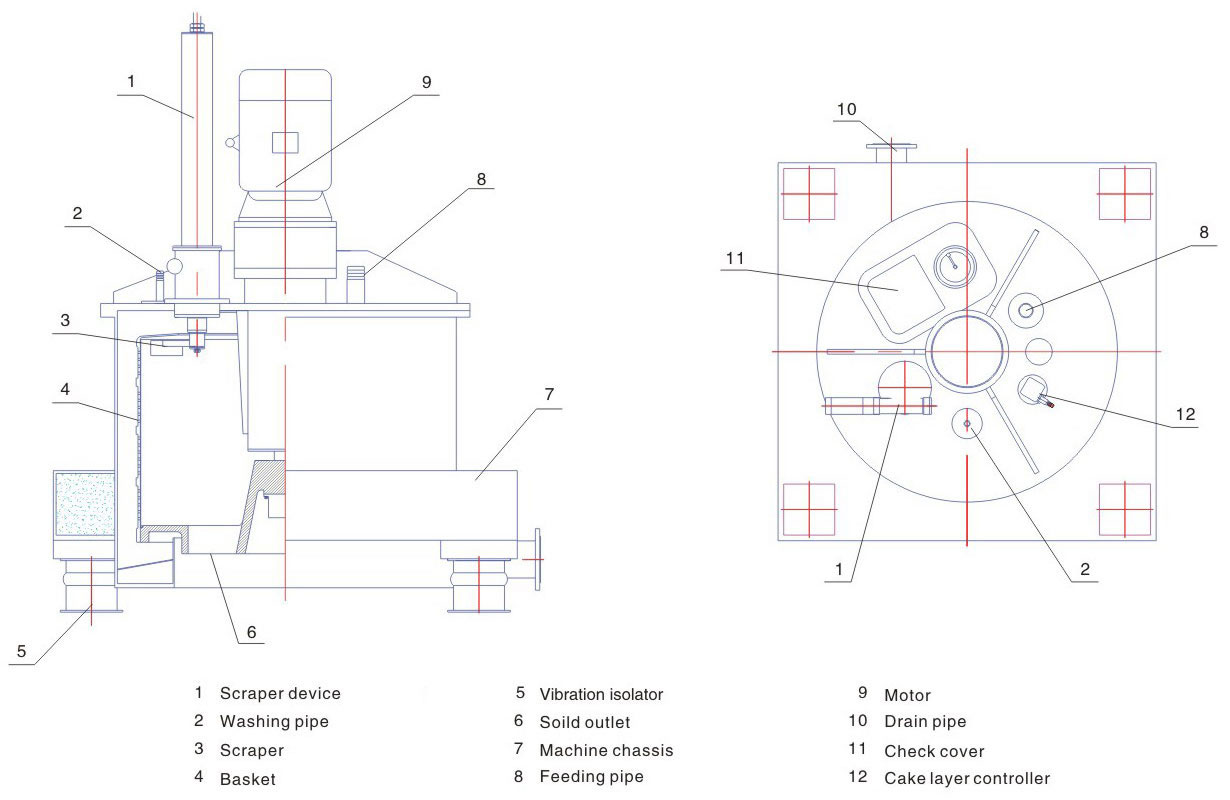

Structure of PAUT/AUT Scraper Centrifuge

Parameter

Technical Parameter of PAUT/AUT Scraper Centrifuge

Items	Models
	PAUT1250A	PAUT1250B	PAUT1320	PAUT1500	PAUT1600
Basket Dia (mm)	1250	1250	1320	1500	1600
Basket Volume (L)	280	450	490	650	970
Max. Load (kg)	380	560	660	880	1300
Max. Rotating speed (r/min)	970	970	900	850	850
Centrifuge Force	658	658	598	607	647
Motor (kW)	22	30	30	37	45
Dimension (L*W*H) (mm)	2100*2000*2200	2100*2000*2600	2100*2000*2600	2700*2350*2600	2600*2350*2900
Weight (kg)	4500	5000	5500	9000	10000

Installation Dimension

Model	A×A	B×B	C	D	H	H0	H1	H2	D1	D2	D3	D4
PAUT1250A	2000×2000	1670×1670	2100	400	2235	1390	506	395	50	25	150	950
PAUT1250B	2000×2000	1670×1670	2100	400	2600	1495	610	226	65	25	150	950
PAUT1320	2000×2000	1670×1670	2100	400	2600	1495	624	232	80	25	150	1040
PAUT1500	2350×2600	1900×2150	2700	400	27200	1450	620	230	80	25	150	1050
PAUT1600	2350×2600	1900×2150	2100	400	2600	1640	670	230	80	25	150	1200
